Why Structural Foam Wins for Large, Heavy-Duty Parts
Key Takeaways
- Large parts are where structural foam pays off, because standard high-pressure molding needs enormous clamp tonnage at that size, leaves sink marks in thick walls, and produces a heavier part.
- The solid skins over a foamed core work a bit like an I-beam, so parts come out roughly 10 to 20 percent lighter than the same part molded solid with no loss of rigidity.
- Low pressure means low molded-in stress, so large panels and covers stay dimensionally stable rather than warping, which keeps lids and doors sealing properly.
- Thick walls of about 0.180 to 0.500 inches, heavy ribs, and deep mounting bosses are how stiffness gets built into a large part, and structural foam runs all three without sinking.
- Large geometries often need multiple gates, and multi-nozzle presses inject at several points at once to keep the fill even and the core consistent across a big footprint.

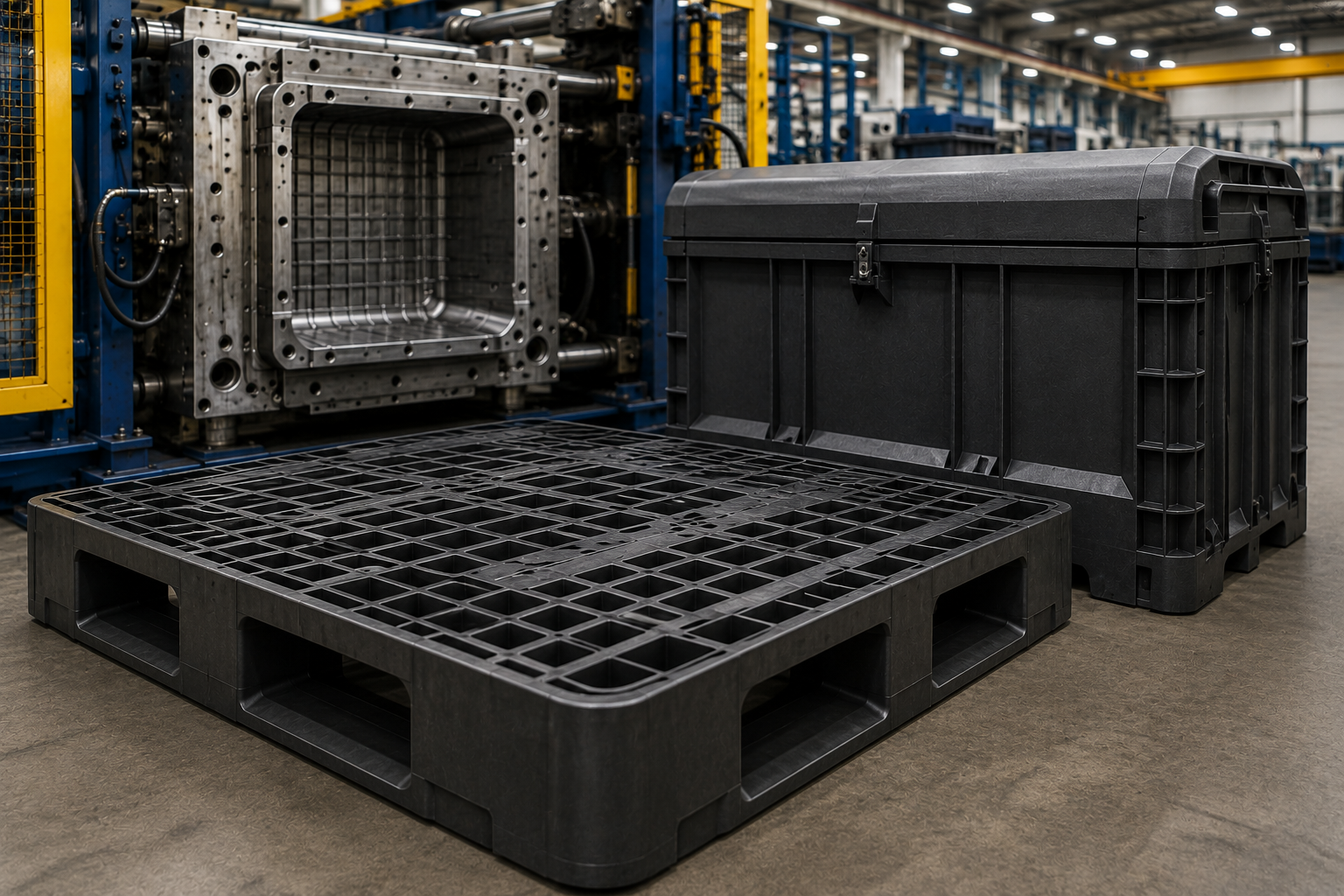

- Typical large structural foam parts include heavy-duty pallets, bulk bins, dunnage, in-ground electrical enclosures, dock systems, and pool panels.
For large, heavy, thick-walled plastic parts, structural foam molding usually beats standard injection molding on the things that matter most: it holds big flat surfaces flat, skips the sink marks that thick walls cause, cuts weight by 10 to 20 percent, and molds huge parts without the enormous presses and tooling a solid part that size would need.
Structural foam is a low-pressure process that gives a part a solid outer skin over a lightweight, foamed core. We cover how that works in our companion post, What Is Structural Foam Molding? This post is about the large-part case specifically: why big parts are where foam earns its keep, what those parts look like, and how to design one. It is the work we are built for at 20/20 Custom Molded Plastics, on presses up to 2,500 tons.
Why large parts are hard for standard molding
Standard high-pressure injection molding runs into three problems as parts get bigger. Holding a large mold shut against high injection pressure takes enormous clamp tonnage, which means bigger, costlier presses and heavy steel tooling. Thick walls cool unevenly and shrink, leaving sink marks and warp. And a large part molded solid is heavy, which drives up material and shipping cost. Structural foam is built to get around all three.
The advantages that matter for large parts
- High stiffness for the weight. The solid skins and foamed core work a bit like an I-beam: stiff and strong for how much they weigh. Parts come out roughly 10 to 20 percent lighter than the same part molded solid, with no loss of rigidity.
- No large sink marks on thick sections. The expanding gas pushes outward as the part cools, so thick walls, deep ribs, and heavy mounting bosses come out clean instead of pulling in.
- Flat, stable big surfaces. Low pressure means low molded-in stress, so large panels and covers stay dimensionally stable rather than warping, which keeps lids and doors sealing properly.
- Big parts on lower-tonnage presses. Because the gas does the packing, large footprints can be molded without the prohibitively large presses high-pressure molding would demand.
- Lower-cost tooling is possible. The low pressure means tooling can often be aluminum rather than hardened steel, which is faster to machine and less expensive. The right approach still depends on the part and the volumes.
- Recycled material fits. The thicker walls and lower pressure make structural foam more tolerant of recycled resin, so post-consumer and post-industrial regrind can often be used.
What large structural foam parts look like
Structural foam shows up wherever parts are big, rugged, and need to stay as light as they can:
- Material handling and logistics: heavy-duty pallets, bulk bins, dunnage, and returnable containers that take repeated forklift and load impacts.
- Utilities and infrastructure: in-ground and underground electrical enclosures, utility boxes, and cable vaults, where flat, stable lids keep a weather-tight seal.
- Building and construction: large panels, decking components, and rugged housings built to hold their shape outdoors.
- Recreation and marine: dock systems, pool panels, and outdoor equipment that has to shrug off weather and moisture.
- Agriculture: bulk bins, tanks, and large components that need to be durable and easy to handle.
Designing a large structural foam part
A few design points make a big part come out right:
- Wall thickness. Structural foam runs thick walls, from about 0.180 inches up to 0.500 inches or more, with 0.250 inches a common nominal. Walls need to be thick enough for the core to form.
- Ribs and bosses. You can run much heavier ribs and bosses than standard molding allows, because they will not sink, which is how you build stiffness into a large part.
- Filling large geometries. Big parts often need multiple gates. Our multi-nozzle presses inject at several points at once, which keeps the fill even and the core consistent across a large footprint.
- Get feedback early. The cheapest time to catch a design issue is before tooling. We give design-for-manufacturability feedback on wall thickness, ribs, draft, and gating up front.
Molding large structural foam parts with 20/20
Large parts need a molder with the press size, plant space, and experience to run them, and that is our core work. We have presses up to 2,500 tons, some of the largest of its kind, plus a full range of smaller presses, with large platens for big geometries, across plants in Holiday City, Ohio; Bluffton, Indiana; and Covington, Georgia. We run around the clock, work with custom and recycled material blends, and handle finishing, assembly, storage, and drop-ship so your parts arrive ready to use. We have been molding large structural foam parts since 1999.
If you are looking to bring a large plastic part to market or convert a heavy metal part to plastic, send us your design. Our engineers will review the geometry, flag anything worth adjusting, and put together a molding quote. Contact 20/20 Custom Molded Plastics to get started.
