Structural foam molding is a low-pressure injection molding process that produces large, rigid plastic parts with a solid outer skin and a lightweight, foamed core. It is the process of choice when a part is too big, too thick-walled, or too heavy for standard injection molding to handle well.

If you design large plastic components, shipping pallets, underground enclosures, equipment housings, dunnage, you have probably hit the same wall. Scale a part up in standard high-pressure injection molding and the clamp tonnage, tooling cost, and sink marks climb right along with it. Structural foam is how large-part molders get around that. It is the core of what we have done at 20/20 Custom Molded Plastics since 1999, on presses up to 2,500 tons across three North American plants.

Here is what the process actually is, why it works the way it does, and how to tell whether your part is a fit.

How structural foam molding works

The process starts like standard injection molding: plastic pellets are melted into a flowable resin. The difference is what comes next. Before the melt is injected, a small amount of nitrogen gas (or a chemical foaming agent) is introduced into it. Only a partial shot is injected into the mold, and at much lower pressure than standard molding.

Once the material enters the cool mold, two things happen at once. The resin touching the mold walls cools fast and forms a dense, solid skin. Inside that skin, the gas expands and creates a cellular, foamed core. That expanding gas keeps pushing material out to fill the cavity, and as the part cools, the internal pressure compensates for shrinkage instead of letting the part pull away from the walls.

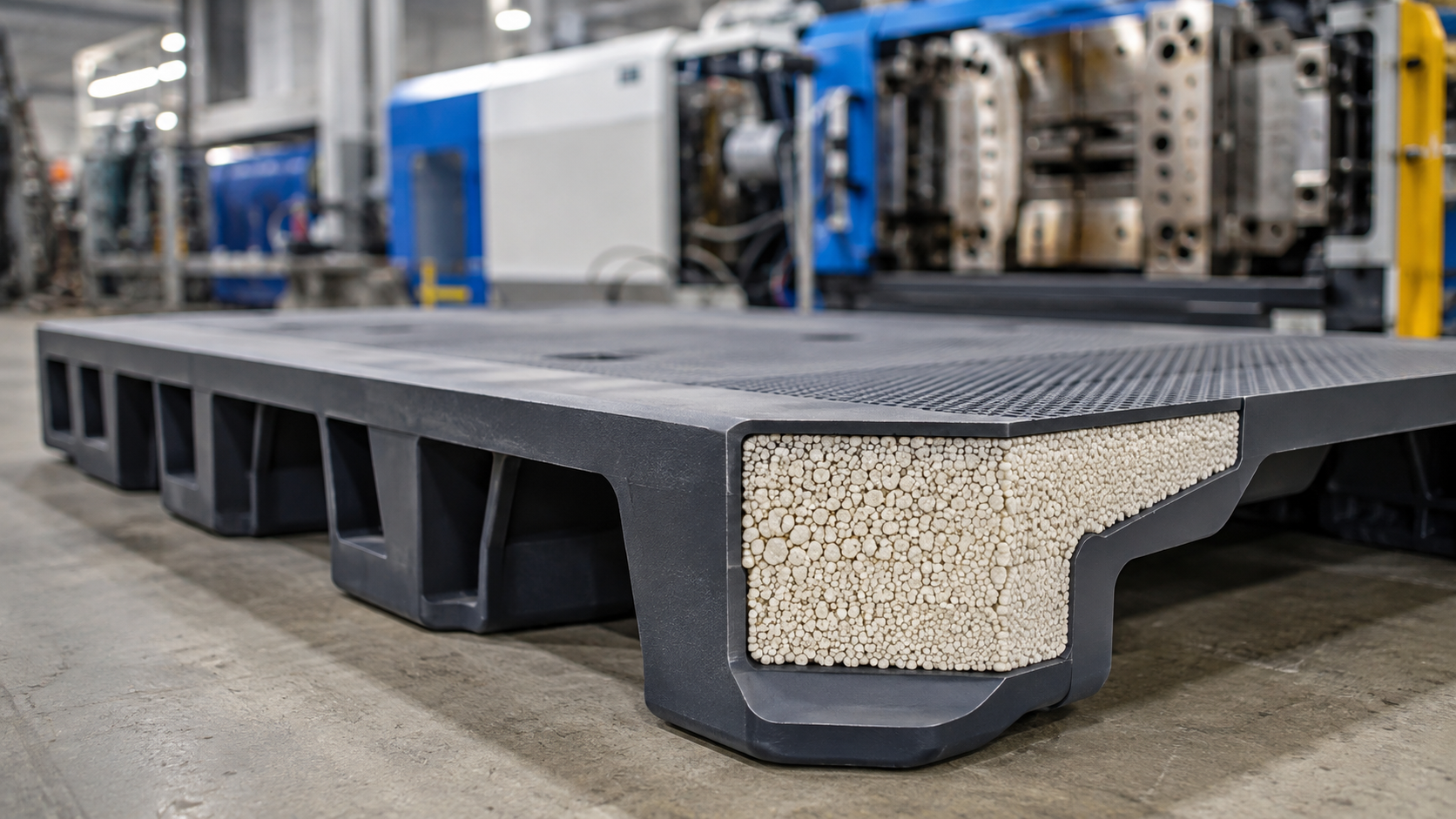

A cross-section of a finished part shows the structure clearly: a solid wall on each face with a cellular core sandwiched between them. That combination is what gives structural foam its high stiffness-to-weight ratio.

One visible side effect is the surface. Structural foam parts usually carry a light swirl pattern, because some of the internal bubbles reach the skin as it forms. It is a normal characteristic of the process, well suited to industrial parts.

What structural foam molding is used for

Structural foam earns its keep wherever parts are large, load-bearing, and need to stay as light as possible. Common examples:

• Material handling: heavy-duty plastic pallets, bulk bins, dunnage, and returnable containers that take repeated forklift and load impacts.
• Utilities and infrastructure: in-ground and underground electrical enclosures, utility boxes, and housings built to sit in the ground for years.
• Equipment housings and covers: large machine enclosures and industrial covers, where thick, rigid walls hold their shape across big flat surfaces.
• Construction and outdoor products: panels, decking components, and other parts that need to be rugged, dimensionally stable, and weather-resistant.

These are the parts where standard injection molding gets expensive or simply cannot hold the geometry, which is why structural foam, not standard molding, is the norm for them.

Why engineers choose structural foam

A few reasons come up again and again:

• It handles thick walls without sink marks. Structural foam is built for wall sections from about 0.180 inches up to 0.500 inches or more, with 0.250 inches a common target. In standard molding, walls that thick cool unevenly, shrink, and leave visible sink marks. The internal gas pressure in structural foam counteracts that shrinkage, so thick walls, heavy bosses, and deep ribs come out clean.
• It makes large parts lighter. Because the core is cellular rather than solid, parts are commonly 10 to 20 percent lighter than the same part molded solid, with no loss of rigidity. Lighter parts also cost less to ship and handle.
• It runs large parts at lower tonnage. The low-pressure process lets very large parts be molded without the enormous clamping force high-pressure molding would need at that size.
• It is forgiving on materials. Structural foam works with most thermoplastics, including HDPE, polypropylene, polystyrene, and ABS. The thicker walls and lower pressure also make it more tolerant of recycled resin, so we can run post-consumer and post-industrial regrind where it makes sense for your part.

Structural foam vs. standard injection molding, in short

The quick version: standard injection molding uses high pressure to pack solid plastic into a mold, which is ideal for smaller parts, thin walls, tight tolerances, and glossy finishes straight off the press. Structural foam uses low pressure and an expanding gas to build large, thick-walled, rigid parts that would be impractical or uneconomical to mold solid.

Is structural foam right for your part?

It is usually a strong fit if you can answer yes to most of these:

• The part is large or heavy, or it replaces a metal or wood part.
• It has thick walls (roughly 0.180 inches or more), ribs, or bosses.
• It needs to be rigid and dimensionally stable across big, flat surfaces.
• An industrial surface finish is acceptable, or the part will be finished after molding.
• You want the option to run recycled material.

If that sounds like your part, structural foam is probably the right route.

Molding structural foam at scale with 20/20

Large structural foam parts need a molder with the press capacity, plant space, and material experience to run them at production volume. We run around the clock, give design-for-manufacturability feedback early, before tooling is committed, and handle finishing, assembly, storage, and drop-ship so your parts arrive ready to use.

Have a large part in mind? Send us your design and our engineers will review the geometry, help you confirm the right process, and put together a molding quote. Contact 20/20 Custom Molded Plastics to get started.

Frequently Asked Questions

What is structural foam molding in simple terms?

It is a low-pressure way of injection molding large plastic parts. A small amount of nitrogen is mixed into the melted plastic so the finished part has a solid outer skin and a lightweight, foamed core, which makes it rigid but lighter than a solid part.

How is structural foam different from regular injection molding?

Standard injection molding uses high pressure to pack solid plastic into a mold and is best for smaller, thin-walled, cosmetic parts. Structural foam uses low pressure and an expanding gas, which suits large, thick-walled, heavy-duty parts and avoids the sink marks that thick walls cause in standard molding.

Why do structural foam parts have a swirl pattern?

The swirl comes from tiny gas bubbles reaching the surface as the skin forms. It is normal for the process and works well for industrial parts. Parts can be textured to reduce the appearance of swirls.

Can structural foam use recycled plastic?

Yes. The lower pressure and thicker walls make structural foam more tolerant of recycled resin than high-pressure molding, so post-consumer and post-industrial regrind can often be used depending on the part.

How much lighter are structural foam parts?

A weight reduction of about 10 to 20 percent compared with a solid molded part is common, though the exact figure depends on the part, wall thickness, material, and processing.
