Structural foam and standard injection both make plastic parts, but they solve different problems. Standard injection molding uses high pressure and is best for smaller parts with thin walls, tight tolerances, and smooth cosmetic finishes. Structural foam uses low pressure and an expanding gas to make large, thick-walled, rigid parts that would be impractical to mold solid. The right choice comes down to your part’s size, wall thickness, finish, and budget.

We run both processes at 20/20 Custom Molded Plastics, so this is not a pitch for one over the other. Here is an honest, side-by-side look at how they differ and how to tell which one fits your part.

The two processes, quickly

Standard injection molding melts plastic and forces it into a steel mold under high pressure, then holds it there while it cools. Packing solid plastic tightly is what gives you fine detail, tight tolerances, and a good surface finish.

Structural foam molding mixes a small amount of nitrogen gas (or a foaming agent) into the melt and injects it into the mold (commonly aluminum). The gas expands inside the mold cavity, creating a solid outer skin over a lightweight, cellular core. That structure is what lets structural foam produce large, rigid, thick-walled parts without the tonnage and tooling a solid part that size would demand. For the full walkthrough, see our companion post, What Is Structural Foam Molding?

Where they differ

Part size and wall thickness

These are usually the deciding factors. In standard molding, thick walls are a liability: as a thick section of solid plastic cools, it shrinks and pulls away from the mold, leaving sink marks, and large flat areas can warp. Structural foam is designed for thick walls, from about 0.180 inches up to 0.500 inches or more, along with heavy ribs and bosses. The internal gas pressure pushes out against the mold as the part cools, so thick sections come out flat and clean. If your part is large, thick-walled, or load-bearing, structural foam has the clear advantage.

Weight and strength

Because a structural foam part has a foamed core instead of a solid center, it is typically 10 to 20 percent lighter than the same part molded solid, while keeping a high stiffness-to-weight ratio. For big parts, that lower weight also cuts shipping and handling costs. Standard molding produces fully dense parts, which is what you want when you need maximum surface hardness or a thin, precise wall.

Surface finish

Standard injection molding wins if a glossy finish is desired. The part comes off the press with a smooth, cosmetic-ready finish, which is why it is typically the preferred choice. Structural foam carries a light swirl pattern from the foaming action.

Tooling and lead time

Tooling is often where the budget decision gets made. High-pressure molding may need hardened steel tooling to survive the injection forces, and for a large part, cutting a big steel mold is a significant upfront cost and a longer lead time. Because structural foam runs at low pressure, its tooling is usually made from aluminum, which is faster to machine, cools well, and costs less. On a large program, that difference adds up. The right tooling approach still depends on the part, the volumes, and the finish you need.

When to choose each

Choose structural foam when:

• The part is large, heavy, or replaces metal or wood.
• It has thick walls, deep ribs, or heavy bosses.
• It needs to be rigid and dimensionally stable across big surfaces.
• An industrial finish is acceptable.
• You want the option to run recycled material.

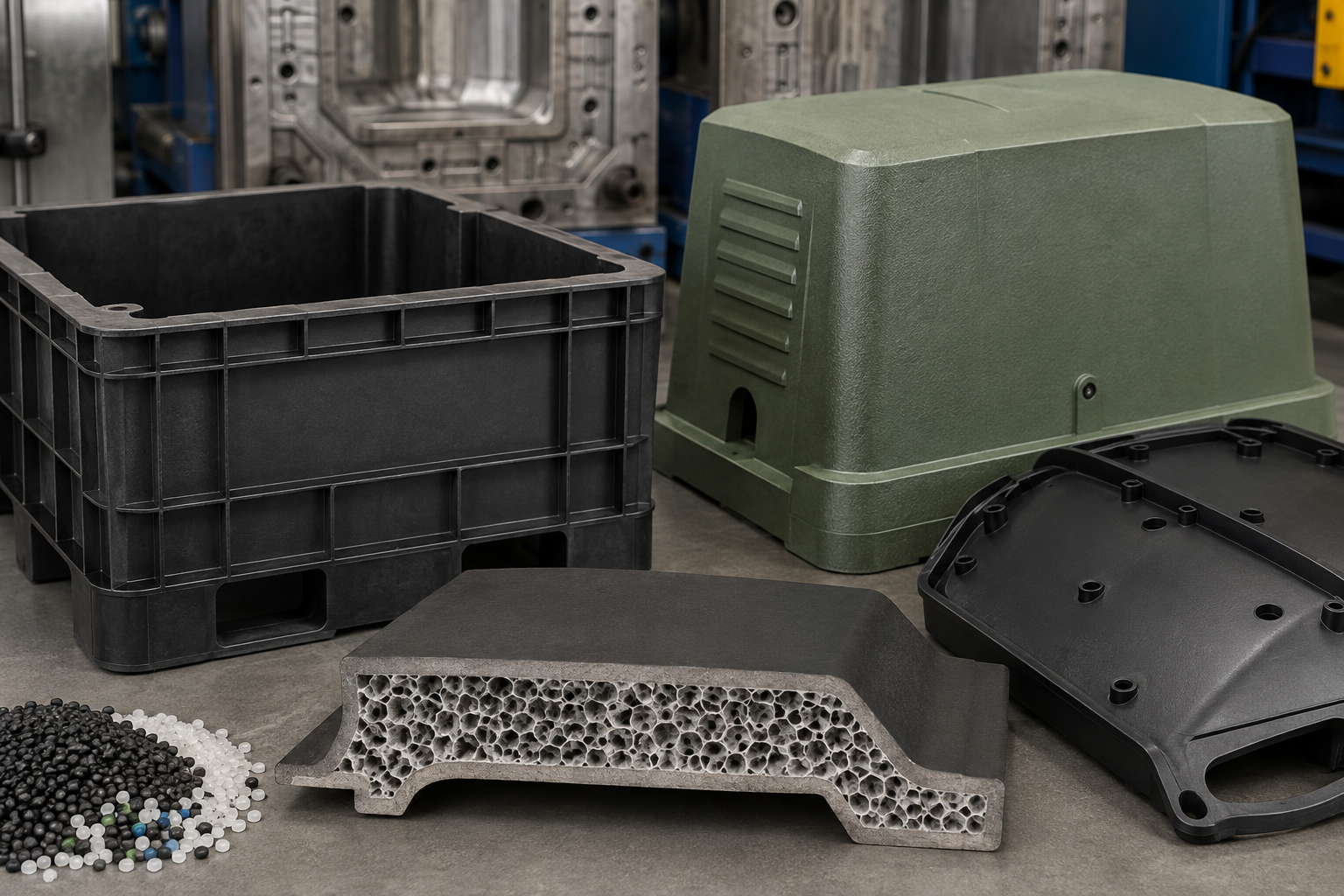

Typical parts: pallets, bulk bins and dunnage, underground enclosures and utility boxes, large equipment housings.

Choose standard injection molding when:

• You need tight tolerances and fine detail.
• A smooth, glossy finish straight off the press matters.
• You are running high volumes of a compact part.

Typical parts: consumer housings, precise internal components, small covers and enclosures.

A note on recycled material

If sustainability is on your radar, structural foam has an edge worth knowing about. Its thicker walls and lower pressure make it more forgiving of the small variations you get in recycled resin, so it can run higher percentages of post-consumer and post-industrial recycled material than high-pressure molding usually allows. That lets you cut material cost and support your own sustainability goals without giving up strength. We run recycled material where it makes sense for the part.

Get a straight answer on your part

Because we run both structural foam and standard injection molding, structural web, and gas-assist processes, we are not locked into one answer. We would rather match your part to the right process than steer you toward the one we happen to have open.

Send us your part design and our engineers will review the geometry, talk through the trade-offs, and give you a molding estimate. With standard-injection presses up to 8,000 tons, low-pressure machines up to 2,500 tons, and three North American plants, we can run it at production scale once the process is set. Contact 20/20 Custom Molded Plastics to start the conversation.

Frequently Asked Questions

What is the main difference between structural foam and injection molding?

Pressure and part structure. Standard injection molding uses high pressure to pack solid plastic into a mold. Structural foam uses low pressure and an expanding gas, so the finished part has a solid skin over a lightweight, foamed core. That makes structural foam better for large, thick-walled parts and standard molding better for small, detailed, cosmetic ones.

Is structural foam stronger than regular injection molding?

Structural foam has a high stiffness-to-weight ratio and resists bending well in large, thick parts, which is why it is used for load-bearing components. A solid injection-molded part is fully dense, so it can have a harder surface and hold thinner, more precise walls. The better choice depends on the part.

Is structural foam cheaper than injection molding?

It can be for large parts. Structural foam often uses lower-cost aluminum tooling and lets big parts run at lower tonnage, which reduces upfront cost. For small, high-volume parts, standard molding’s faster cycle times usually make it more economical.

When should I use structural foam instead of injection molding?

Use structural foam when the part is large, thick-walled, load-bearing, and can accept an industrial finish, such as pallets, bins, enclosures, and equipment housings. Use standard injection molding for smaller, thin-walled parts that need tight tolerances or a glossy finish.
